Table Extensions (Steps 28 - 29)

Step 28 – Remove Table Extension Fasteners & Support Bar Fasteners

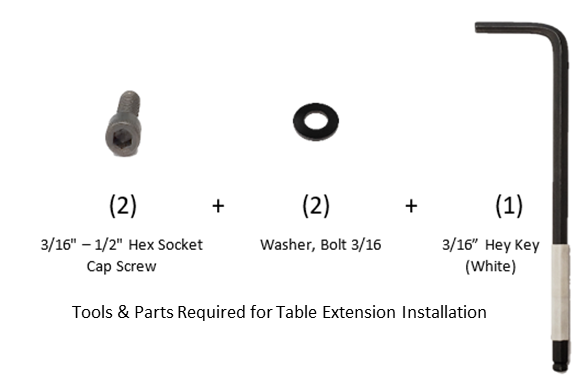

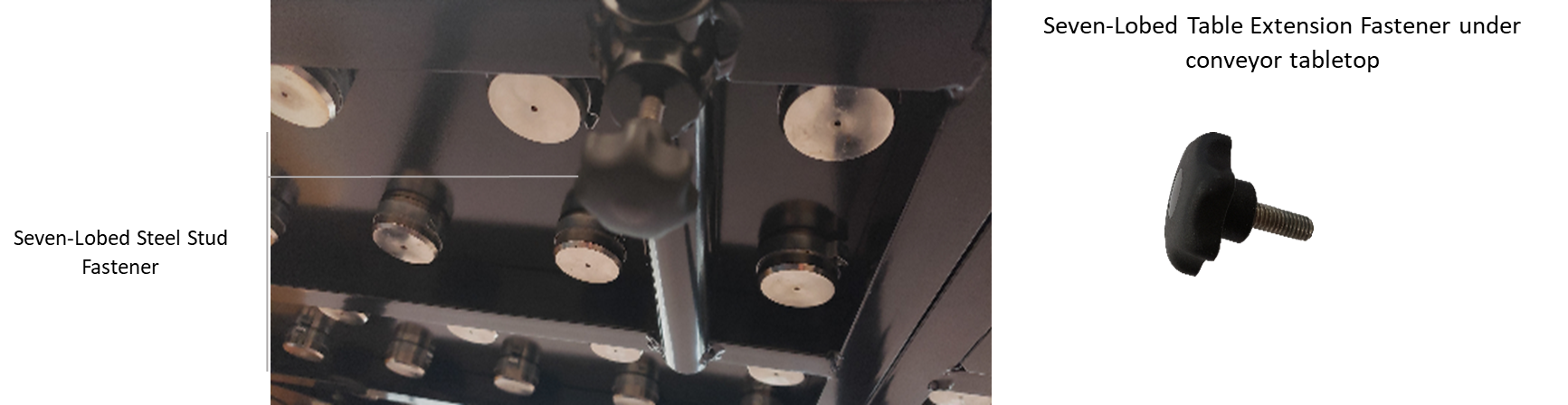

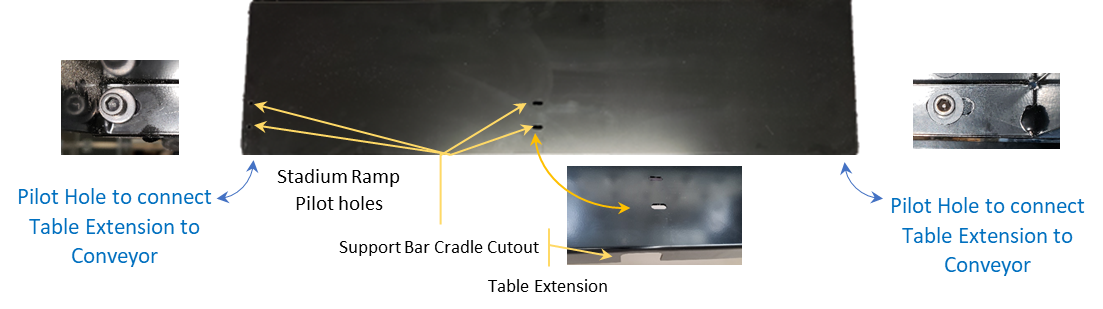

Using the 3/16” Hex Key (White) remove the two (2) hex screws securing the table extension to the conveyor section. The Screws securing the table extension can be found in each corner of the table extension. Place the Hex Screws and Washer Bolts in Compartment 4 of the Tools & Small Parts Box. Remove the two (2) Seven-Lobed Knob Steel Threaded Stud that secure the Table Extension Support Bars to the Conveyor Section. Place the Seven-Lobed Knob Steel Threaded Stud in Compartment 7 of the Tools & Small Parts Box.

Step 29 – Remove Table Extension

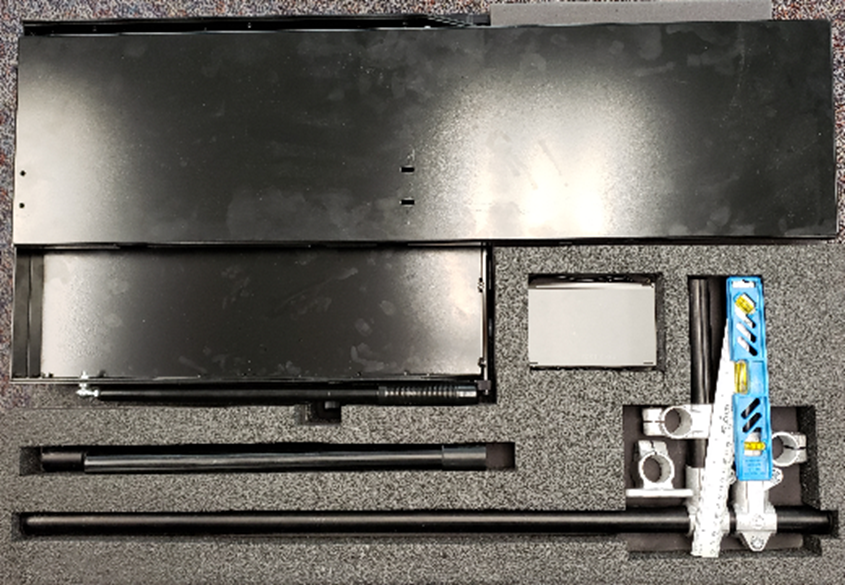

Slide the Table Extension Support Bars away from the conveyor section so the Table Extension can easily be removed.  Remove the Table Extension and place it on top of the conveyor section. Use this as a work surface for Step 30.  Get the two (2) Table Extension Foam Supports from the lid.  Place the foam supports on the Stadium Ramp. Get the Table Extension and store the Table Extension on the Foam Supports and in the cutouts of Layer 1 of the Foam Packing Tray as shown.
