Accessing the Report

Navigate to Reports > Scanner Barcode Duration Report. The report loads directly to the results grid.

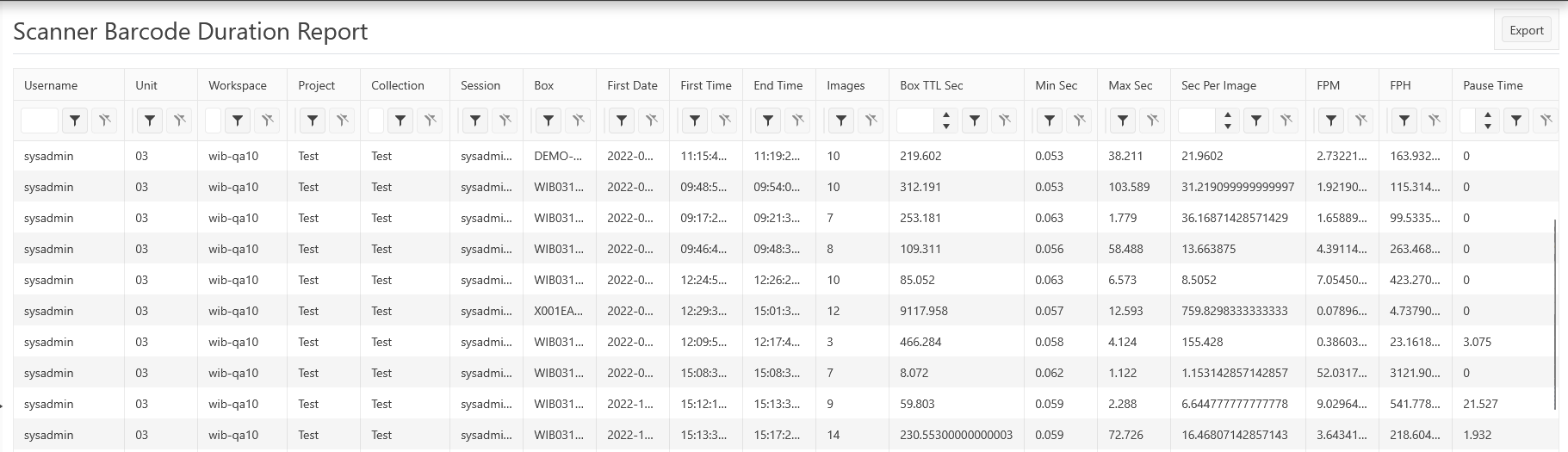

Results Grid

The grid displays one row per box per session. Each row represents a single operator's scan activity on one box within one session.

The grid columns are:

• Username — the operator's username.
• Unit — the WIB™ Unit identifier used during the session.
• Workspace — the Workspace the session ran in.
• Project — the Project the box belongs to.
• Collection — the Collection the box belongs to.
• Session — the session identifier.
• Box — the Box Identifier.
• First Date — the date scanning began on this box.
• First Time — the time scanning began on this box.
• End Time — the time scanning ended on this box.
• Images — the number of images scanned in this box during the session.
• Box TTL Sec — the total time spent on the box, in seconds (from First Time to End Time).
• Min Sec — the minimum time spent on a single image scan within the box, in seconds.
• Max Sec — the maximum time spent on a single image scan within the box, in seconds.
• Sec Per Image — the average time per image (Box TTL Sec divided by Images), in seconds.
• FPM — frames per minute.
• FPH — frames per hour.
• Pause Time — the total time within the session during which no scanning occurred, in seconds.

Each column supports filtering. The grid is paginated; use the pager controls at the bottom to navigate pages and adjust page size.

Exporting the Report

Click Export at the top-right of the page to open the Export a Report dialog.

Dialog fields:

• Report Type — auto-set to BarcodeDurationReport. Read-only.
• Email Recipients — optional. Enter one or more email addresses to be notified when the export completes.
• Export Targets — optional. Select one or more configured targets to deliver the exported file to. Targets are configured under Section 13.5 Set Export Destination.
• Filter — pre-populated with the current filter state of the grid. Editable.

Click Submit to queue the export. The exported file becomes available in Section 7.2 Exported Reports when processing completes.

For a recurring export on a schedule, see Section 7.3 Export Report Schedules.

Exported Format

The exported file is a Microsoft Excel workbook (.xlsx) containing a single sheet with all visible rows and the same columns as the on-screen grid.

Note: Each report under Section 7.1 produces a different export format. See each report's article for its specific export format.

Note: Access to the Scanner Barcode Duration Report requires the Scanner Barcode Duration Report permission in Section 12.5 Security Policy.
