Section 7.1.3 Reconciliation Report

Section 7.1.3 Reconciliation Report

Accessing the Report

Navigate to Reports > Reconciliation Report. The report loads directly to the results grid. A row appears in the report when any image for a box is exported.

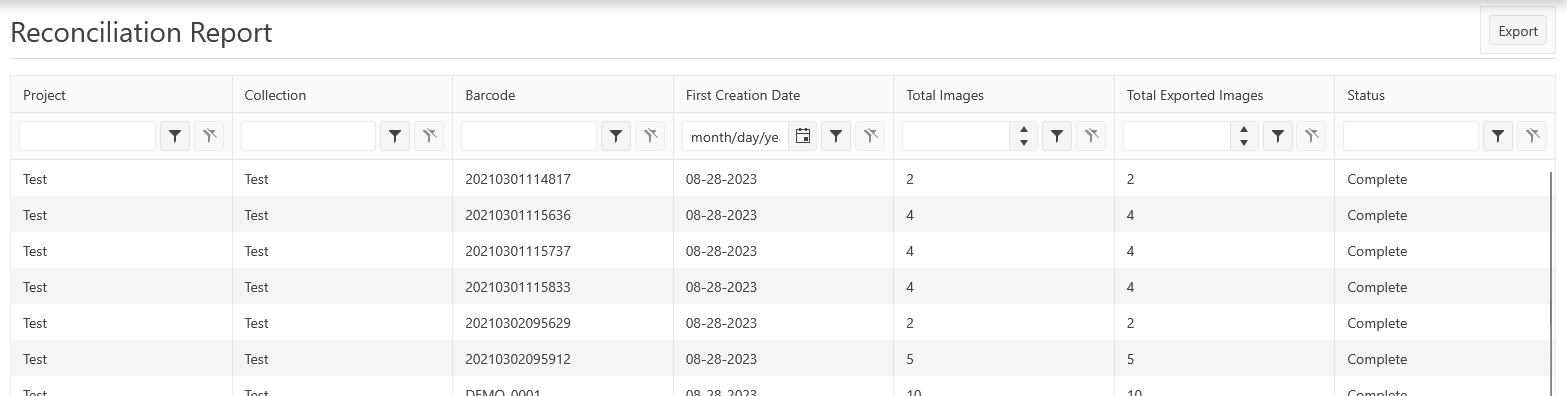

Results Grid

The grid displays one row per box.

The grid columns are:

  • Project — the Project the box belongs to.
  • Collection — the Collection the box belongs to.
  • Barcode — the Box Identifier.
  • First Creation Date — the date the first export for this box was created.
  • Total Images — the total number of images in the box.
  • Total Exported Images — the number of images in the box that have been exported.
  • Status — the export completeness status. Complete indicates all images have been exported; Partial indicates export is in progress or incomplete.

Each column supports filtering. The grid is paginated; use the pager controls at the bottom to navigate pages and adjust page size.


Exporting the Report

Click Export at the top-right of the page to open the Export a Report dialog.

Dialog fields:

  • Report Type — auto-set to ReconciliationReport. Read-only.
  • Email Recipients — optional. Enter one or more email addresses to be notified when the export completes.
  • Export Targets — optional. Select one or more configured targets to deliver the exported file to. Targets are configured under Section 13.5 Set Export Destination.
  • Filter — pre-populated with the current filter state of the grid. Editable.

Click Submit to queue the export. The exported file becomes available in Section 7.2 Exported Reports when processing completes.

For a recurring export on a schedule, see Section 7.3 Export Report Schedules.

Exported Format

The exported file is a Microsoft Excel workbook (.xlsx) containing a single sheet with all visible rows and the same columns as the on-screen grid.

Note: Each report under Section 7.1 produces a different export format. See the Scanner Barcode Duration Report, Export Package History Report, and Image Quality Analysis Report articles for their specific export formats.

Note: Access to the Reconciliation Report requires the Reconciliation Report permission in Section 12.5 Security Policy.
