Camera Settings

Camera settings include setting the Channel, Resolution, show/hide Focus Controls, and Configuration for each camera. There are two (2) types of cameras: array and document. The three (3) array cameras capture the front, back, left, right, top, and aerial photos. The two (2) document cameras capture the manifest, standard, stadium, divider, file, tab, and document images. The document camera is position below the main monitor and toward the left-hand side of the WIB™ Unit and toward the left-hand side of the WIB™ Unit. The Stadium camera is positioned below the right touchscreen monitor toward the right side of the WIB™ Unit.


Camera Channel

The five (5) camera channels are as follows:

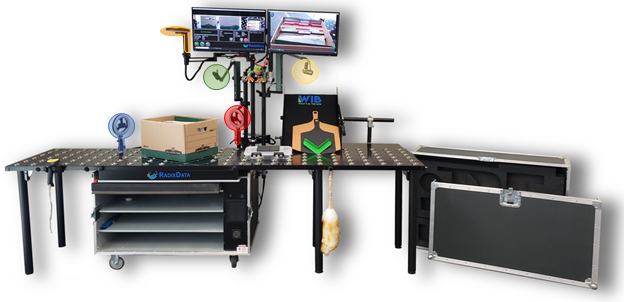

1.       Left – the blue camera in Figure 4.

2.       Back – the red camera

3.       Top – orange camera

4.       Standard – green camera; and

5.       Stadium – yellow camera

Note: The highlight color for camera(s) 1 through 3 matches the cord covering for each camera.

The operator can change the camera channel by clicking on the touchscreen video feed for the camera and selecting which channel to assign the camera view to.
