Camera Channel

The five (5) camera channels are as follows:

1.       Left – the blue camera in Figure 4.

2.       Back – the red camera

3.       Top – orange camera

4.       Standard – green camera; and

5.       Stadium – yellow camera

Note: The highlight color for camera(s) 1 through 3 matches the cord covering for each camera.

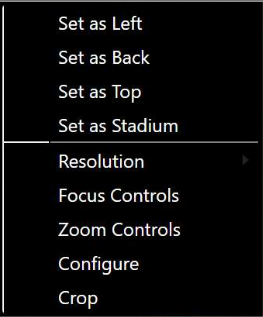

The operator can change the camera channel by clicking on the touchscreen video feed for the camera and selecting which channel to assign the camera view to.

Give the application 5 seconds to register the change then select Reconnect to refresh the live camera feeds. Do this until all cameras are assigned correctly.
