Step 35 – Place Front Cover on Top of Layer 1 of Foam Packing Tray
Retrieve the Front Cover from the Lid. Place the
Front Cover on top of the Foam Packing Tray with the latch away from you.

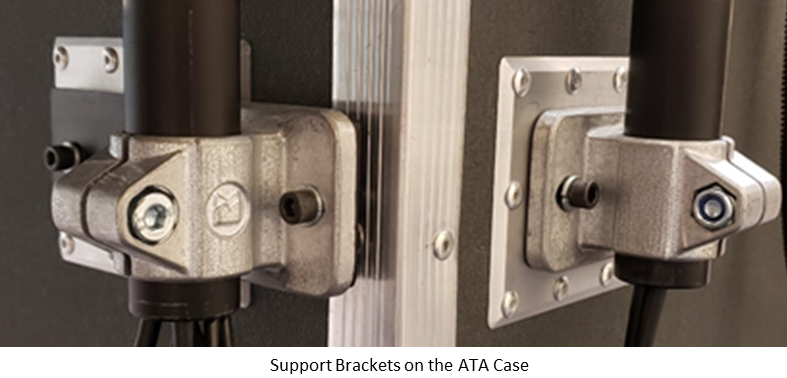

Step 36 - Remove the Side-Mounted Support Bracket from the ATA Case

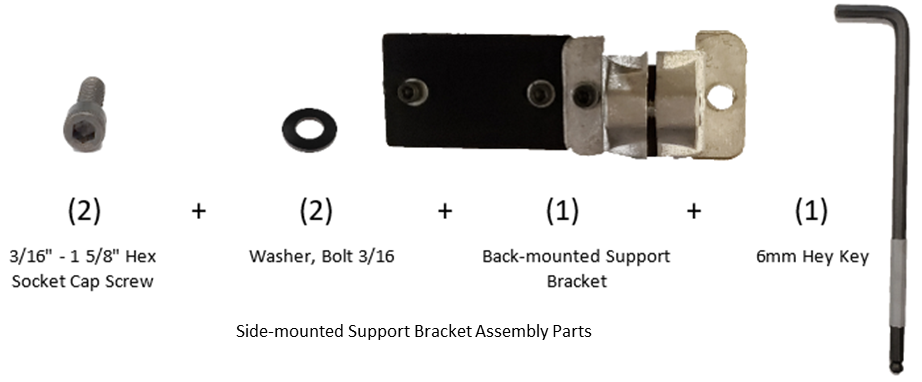

Remove the Side-Mounted bracket from the ATA
case using the 3/16” (White) hex key and unscrewing two (2) 3/16”- 5/8” Hex
Socket Cap Screws and two (2) 3/16” Washers. Store the Hex Socket Cap Screws and Washers in Compartment
2 of the Tools and Small Parts Box.
Step 37 - Remove Back-Mounted Support Bracket from the ATA Case

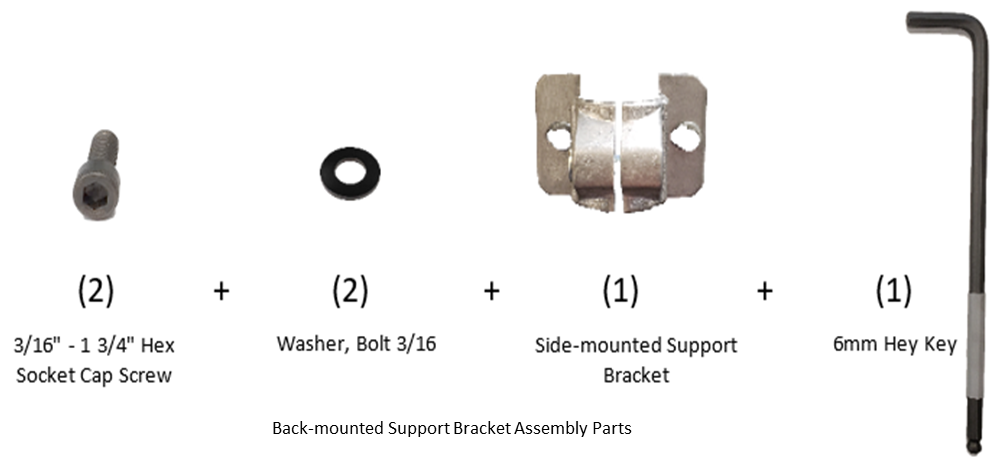

Remove the Back-Mounted bracket from the ATA
case using the 3/16” (White) hex key and unscrewing two (2) 3/16”- 3/4” Hex
Socket Cap Screws and two (2) 3/16” Washers. Store the Hex Socket Cap Screws and Washers in Compartment 1 of the Tools and Small Parts
Box.
Step 38 - Remove Support
Arm

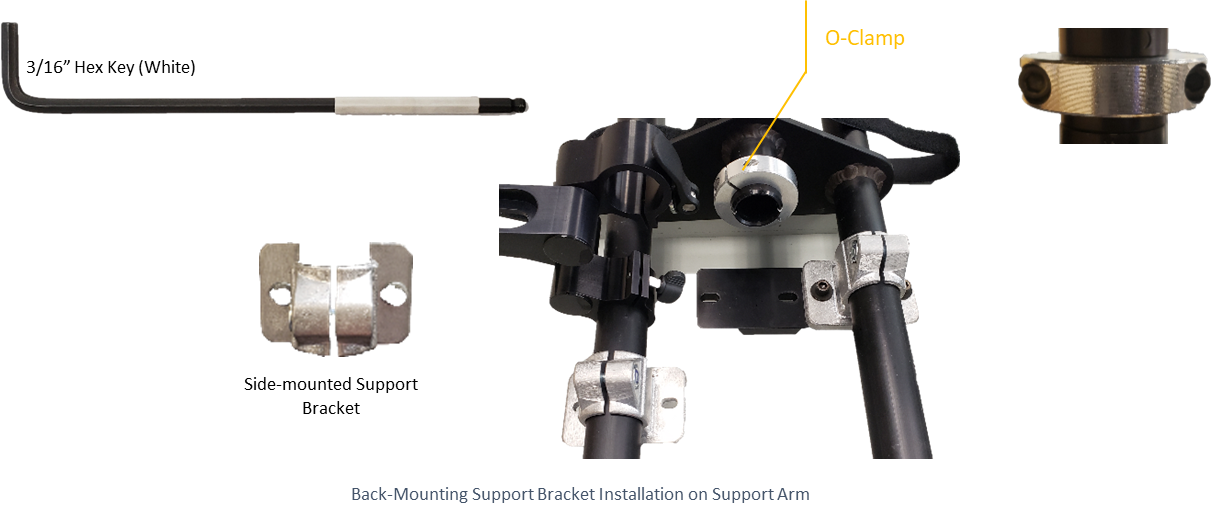

Open the straps used to secure the Support Arm
in the Front Cover. Using the Using the 3/16” (White) Hex Key loosen the two
(2) hex socket head cap screws in the O-clamp. Remove Support Arm from the base.

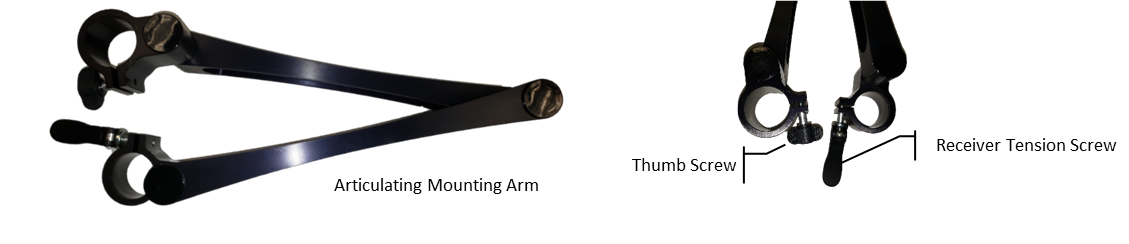

Step 39 – Remove Back-Mounted Bracket and Articulating Mounting Arm from
Support Arm
Lay the Support Arm in the cradle of the Front
Cover. Slide the Back-Mounted Bracket
off the Support Arm and Cables. Temporarily store this in the Front Cover. Unscrew the thumb screw of the Articulating
Arm and Remove it from the Support Arm.
Temporarily store the arm in the Front Cover. Slid the Side-Mounted
Support Bracket onto the Pole and position the Support Arm and cables for secure
storage in the Front Cover.

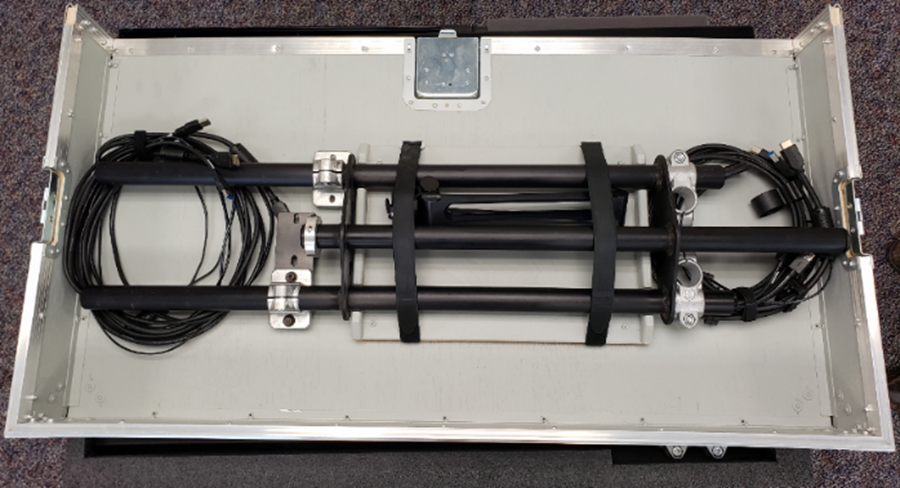

Step 40 – Secure Support Arm and Cables in the Front Cover
Place the Articulating Arm in between the Poles
of the Support Arm. (If the Articulating Arm will not fit place the
Articulating Arm on one of the Conveyor Sections below). Secure the Cables, Articulating Arm and
Support Arm with the Velcro Straps.
Step
41 – Store the Back-Mounted Bracket
Slide the Front Cover so the Back-Mounted
Bracket can be stored with the Stadium Ramp/Backstop Receivers, Ruler and Level
as shown. Store the Tools and Small Parts Box with the Stadium Conveyor Section
on the top shelf. The Tools and Small Parts Box is no longer needed.
