Remove Cameras w/ Ring Lights (Steps 15 - 19)

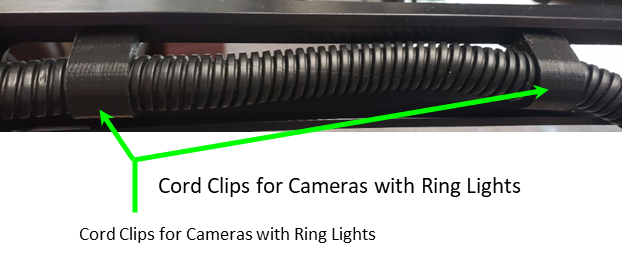

Remove the Cord Clips from the Articulating Arm channels
by pinching open side of the clips together to disengage them from the
Articulating Arm channels as shown in below for each of the Cameras with Ring Lights.

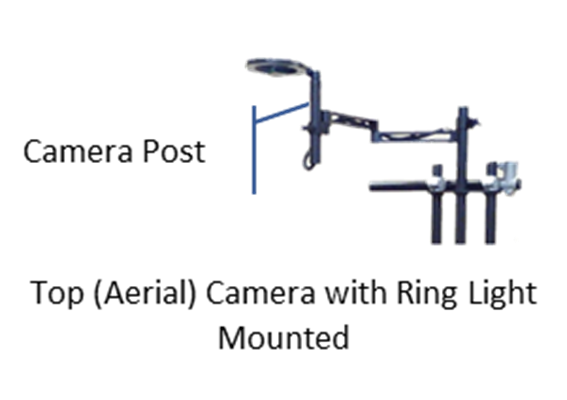

Remove the Cameras with Ring Lights by releasing
the Receiver Tension Screw and pulling the Camera Post and cables through
Articulating Mounting Arm receiver.

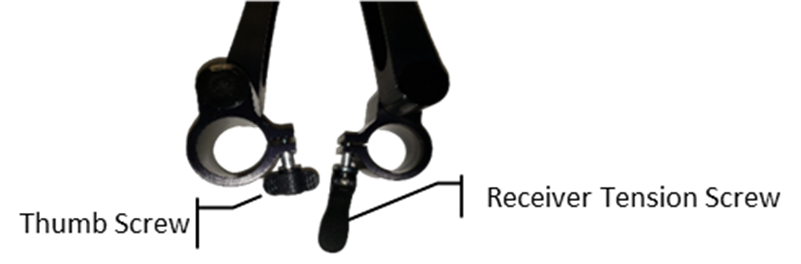

Loosen the thumb screw used to secure the knuckle
mount ball joint so that the ring light can be positioned correctly for storing
the camera. The knuckle mount ball joint
is positioned at a 45° angle for storing the camera. Make sure the cables are not stretched or
bound when storing the camera. The

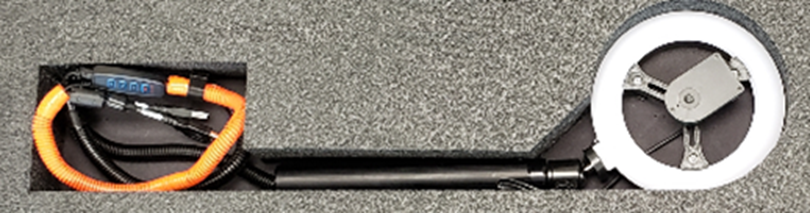

camera and ring light are face up when stored away as shown.
Repeat Step 17 for the Left (Front) Camera (blue

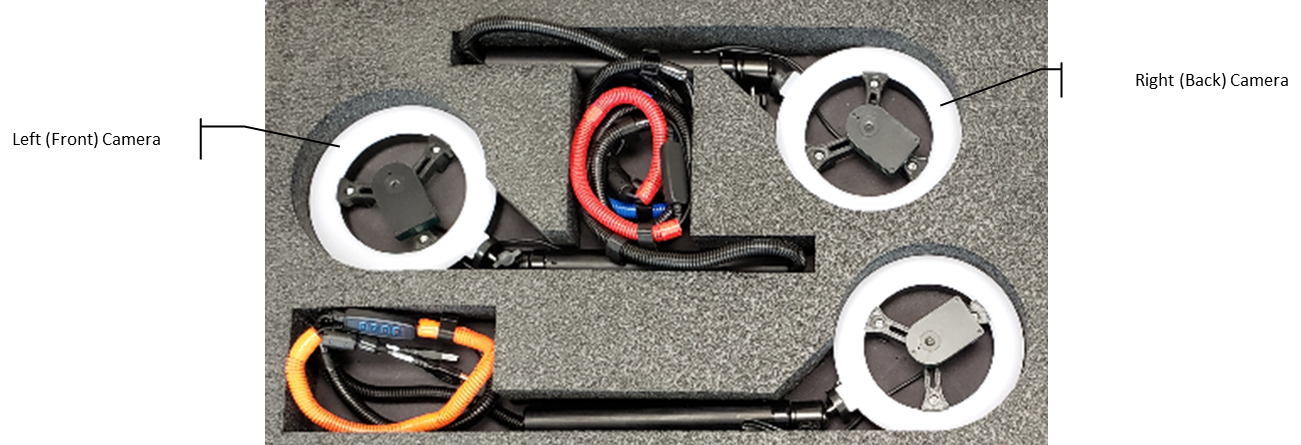

cord). Refer to Figure for storing the Left (Front) Camera with Ring light and cords
in Layer 2 of the Foam Packing Tray. The Left (Front) Camera is stored in the
left compartment.
Repeat Step 17 for the Right (Back) Camera with
Ring Light, red cord. Refer to Figure for storing the Right (Back) Camera with Ring light and cords in Layer 2 of the
Foam Packing Tray. The Right (Back) Camera is stored in the right compartment.
