Remove Barcode Scanner (Steps 22 - 23)

Step 22 - Uninstall Barcode Scanner Cradle

Using the 5/32” Hex Key, remove the barcode scanner mount from the inbound conveyor section.

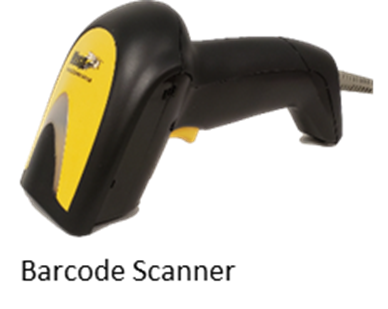

Step 23 – Unplug and Store Barcode Scanner

Unplug the Barcode Scanner from the USB Port labeled Barcode which is located on the left side of the Base Conveyor Section as shown below.
