Remove Articulating Arms for Cameras with Ring Lights (Steps 20 - 21)

Step 20 – Remove Articulating Mounting Arms for Left (Front)

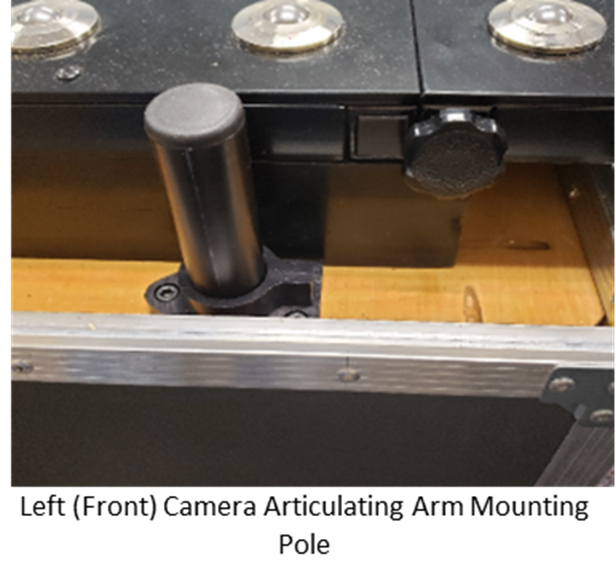

The Articulating Arm for the Right (Back) Camera on the pole located at the back of the base just to the left of the inbound conveyor section as shown in Figure below. Loosen the thumb screw on the receiver for the Articulating Mounting Arm. Slide the Articulating Mounting Arm off the pole. Fold the Articulating Mounting Arm so both receivers are aligned. Store the Articulating Mounting Arm in Layer 2 of the Foam Packing Trays as shown.

Step 21 – Remove Articulating Mounting Arm for Top (Aerial) Camera with Ring Light

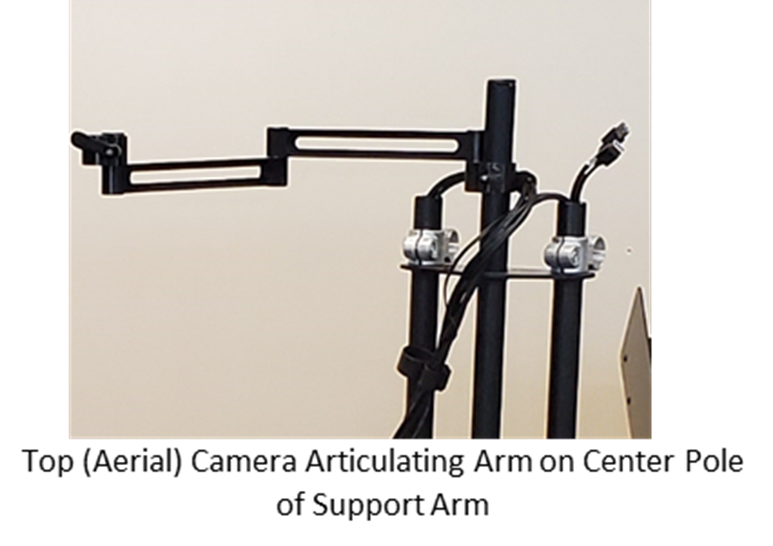

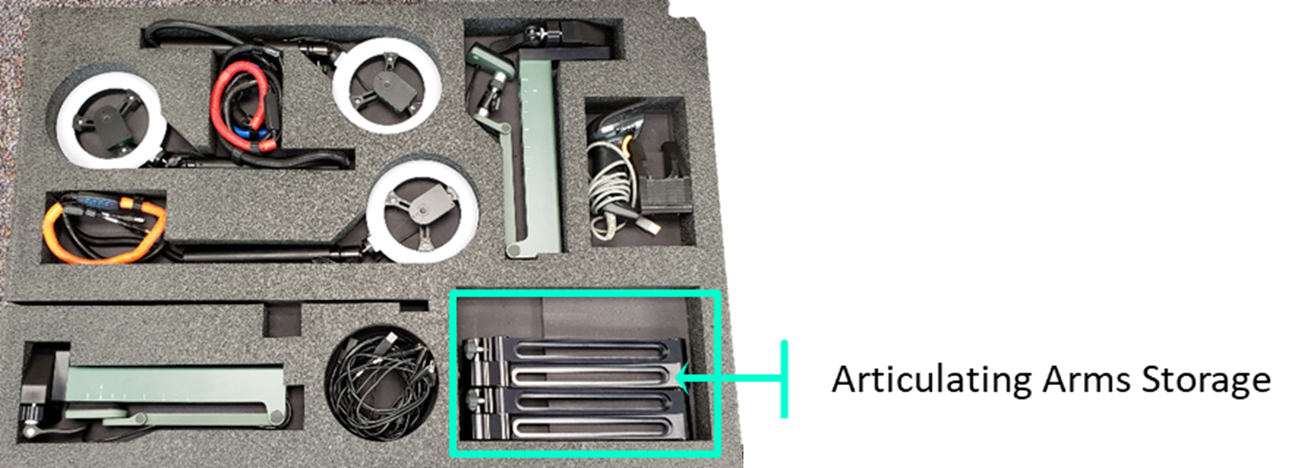

The Articulating Arm for the Top (Aerial) Camera with Ring Light is located on the Center Pole of the Support Arm as shown in Figure below. Loosen the thumb screw on the receiver for the Articulating Mounting Arm. Slide the Articulating Mounting Arm off the pole. Fold the Articulating Mounting Arm so both receivers are aligned. Store the Articulating Mounting Arm in Layer 2 of the Foam Packing Trays as shown.
